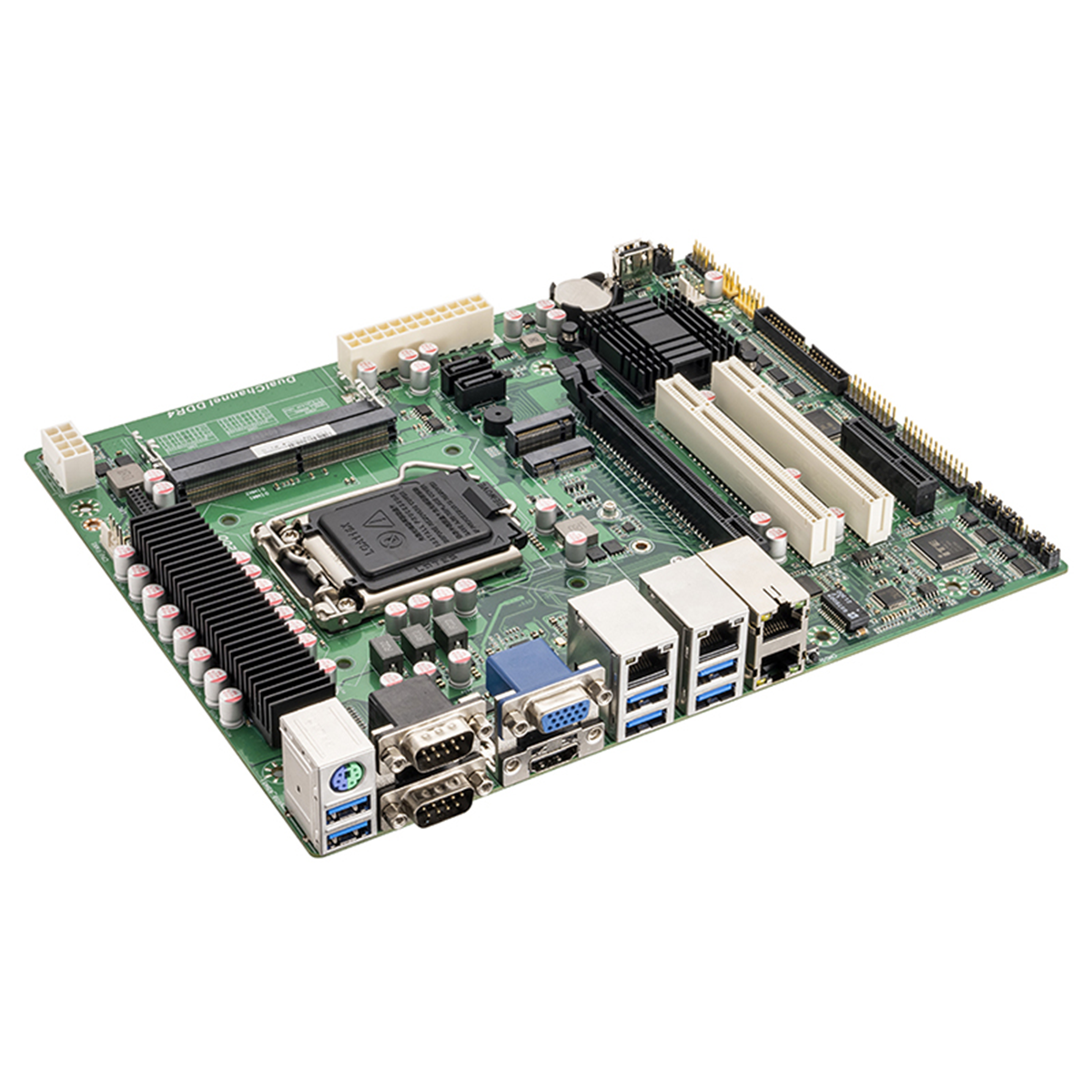

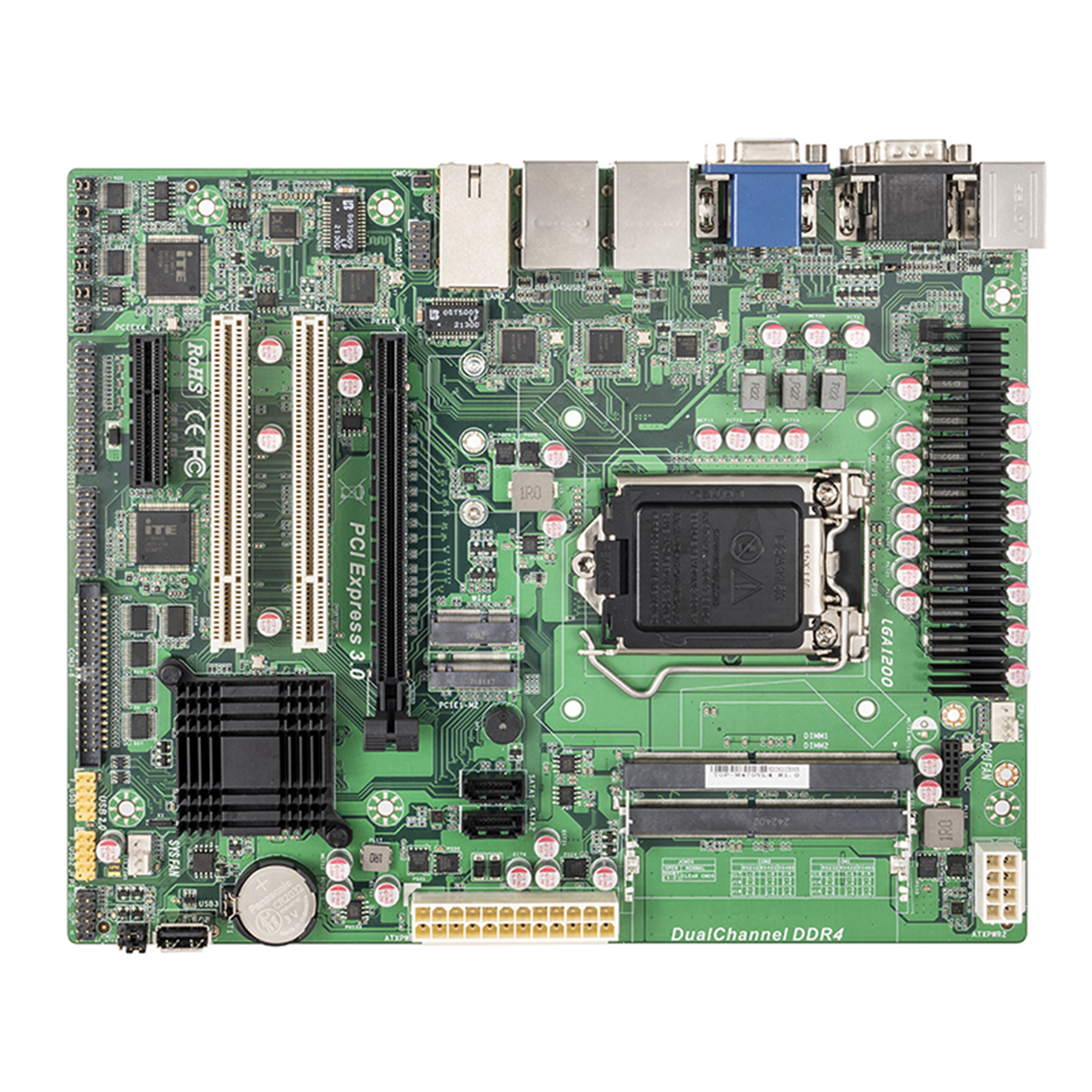

TOP-M470VL4
■ 支持LGA1200架構的10th/11th Celeron/Pentium/Core? i3/i5/i7/i9處理器
■ 2*DDR4 內存插槽,支持雙通道最大2933MHz內存，容量最大64GB
■ 支持VGA,HDMI 4個intel 網卡
■ 支持6個COM可選，
■ 6個USB 3.0，5個USB 2.0
■ 可擴展1個PCIe x16，1個PCI，2個PCIex4,支持M.2 SSD，M.2 WIFI
|
處理器 |
支持Intel? Core? I9/i7/i5/i3 processor |
|
|
芯片組 |
Intel H470高速芯片 |
|
|
BIOS |
64Mb Flash ROM |
|
|
擴展槽 |
PCI |
32-bit/33 MHz, 1 slot |
|
PCIe x16 (Gen3) |
16 GB/s per direction, 1 slot |
|
|
|
|
|
|
PCIe x4 (Gen3) |
4 GB/s per direction, 1 slot |
|
|
PCIE1-M2 |
支持NGFF/NVME自適應 |
|
|
M.2 WIFI |
支持M.2 WIFI 6 |
|
|
內存 |
Technology |
Dual Channel DDR4 @2933MHz |
|
最大支持 |
64 GB per DIMM |
|
|
插槽 |
2 x 260 -pin |
|
|
圖形 |
集成顯卡 |
Intel UHD Graphics |
|
VGA |
1920x1200@60Hz |
|
|
HDMI |
4096x2160@30Hz |
|
|
|
|
|
|
以太網 |
LAN1 |
GbELAN1：10/100/1000 Mbps intel i219 |
|
LAN2 |
GbELAN1：10/100/1000 Mbps intel i210 |
|
|
LAN3 |
GbELAN1：10/100/1000 Mbps intel i210 |
|
|
LAN4 |
GbELAN1：10/100/1000 Mbps intel i210 |
|
|
SATA x 2 |
最大數據 |
轉速 600 MB/s (SATA 3.0 ) |
|

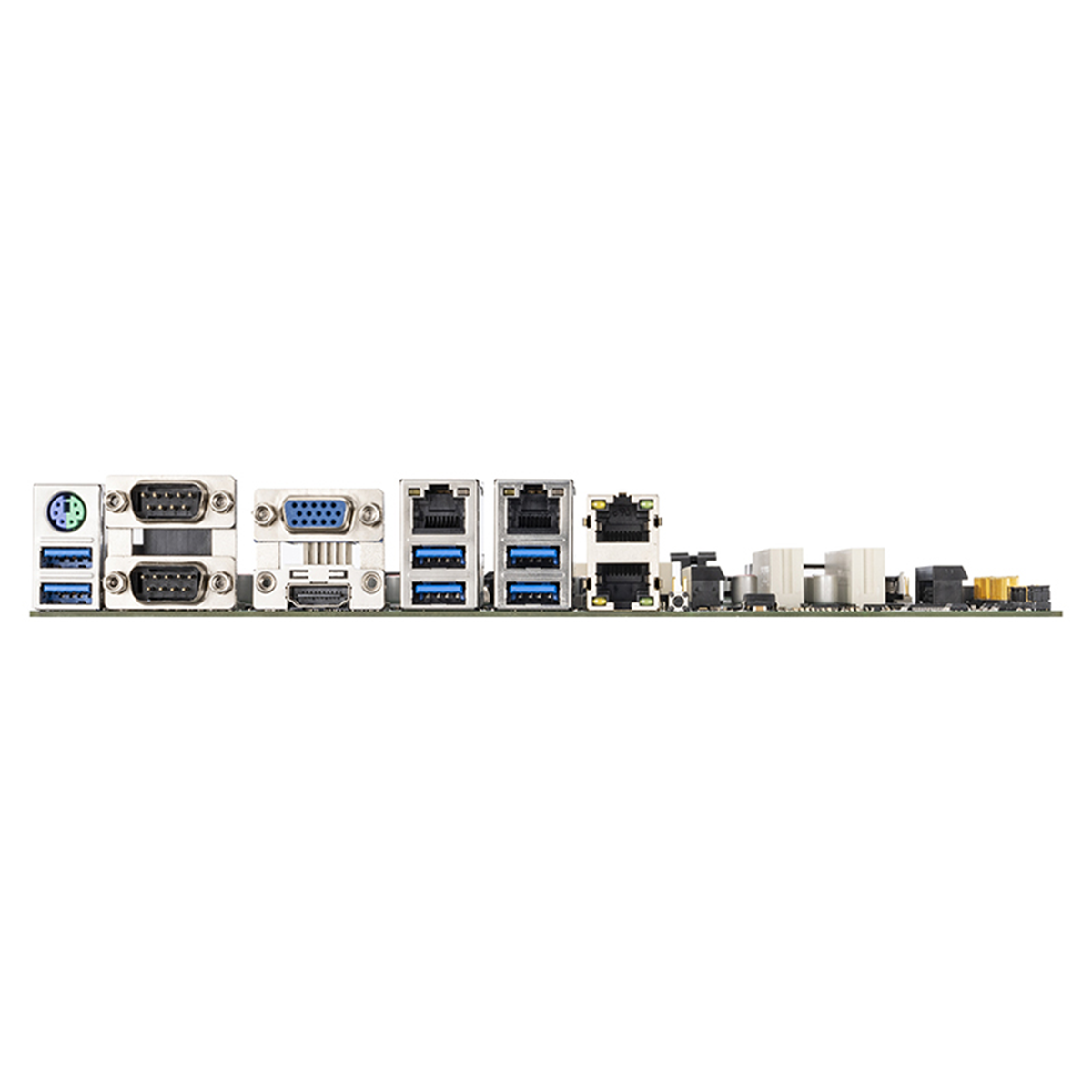

I/O接口 |
|
|
|
VGA |
1 |
|
|
HDMI |
1 |
|
|
Ethernet |
4 |
|
|
USB |
USB3.0 x 6 |
|
|
Serial |
2 (RS-232, COM1-2 Support RS-232/422/485 ) |
|
|
PS/2 |
2 (1 x Keyboard and 1 x Mouse) |
|
|
|
|
|
|
|
|
|
|
內部接口 |
USB |
5 (USB 2.0) |
|
Serial |
4(COM3-6支持 RS-232) |
|
|
LPT |
1 |
|
|
GPIO |
1 |
|
|
|
|
|
|
M.2 WIFI |
1 |
|
|
SATA |
SATA3.0 x 2, |
|
|
M.2 |
1 |
|
|
環境 |
工作溫度：0-60攝氏度 |
|
|
儲存溫度：-20-75攝氏度 |
||
|
工作濕度：5%-95%，無冷疑 |
||
|
尺寸 |
245*200mm |
|
CPU選項（產品規格表內信息）
|
CPU |
I9-11900K |
i7-11700 |
I5-11500 |
I9-10900 |
I7-10700 |
I5-10500 |
|
|
|
|
|
|
核心數 |
8 |
8 |
6 |
10 |
8 |
6 |
|
|
|
|
|
|
主頻 |
2.5GHz |
3.7GHz |
2.7GHz |
2.8GHz |
2.9GHz |
3.1GHz |
|
|
|
|
|
|
三級緩存 |
16M |
16M |
12M |
20M |
16M |
12M |
|
|
|
|
|
|
功率 |
65W |
65W |
65W |
65W |
65W |
65W |
|
|
|
|
|
Ordering Information
|
Part Number |
PCH |
Memory |
VGA |
DVI |
HDMI |
USB3.0/2.0 |
COM |
LAN |
PCIe x16 |
PCIe
X8 |
PCIe
X4 |
PCI slot |
|
|
8100470001000P |
H470
|
Non ECC |
1 |
0 |
1 |
6/5 |
6 |
4 |
1 |
0 |
1 |
2 |
|
|
|
|
Non ECC |
|
|
|
|
|
|
|
|
|
|
|
Packing List
|
Part Number |
Description |
Quantity |
|
33660470010100P |
I/O port bracket |
1 |
|
|
|
|
